The effiQueenc motorized ball valve unit consists of an on/off actuator and an EFFI-V2SS series ball valve… (2-WAY) and/or EFFI-V3SS series ball valve… (3-WAY). Its features include a compact design, stable operation, excellent water shut-off capacity, high water flow, zero dirt block, and low torque. effiQueenc motorized ball valves are widely used in HVAC systems, heating systems, cooling systems, and some industrial equipment.

Applications

HVAC, heating and cooling systems, industrial equipment

actuateur-valve-3-voie-effiqueenc

Operation

The effiQueenc motorized ball valve is powered by an EFFI-ACT24VAC actuator. A modulating on/off control system controls the actuator by sending a command signal to move the ball valve to the open position.

EFFI-ACT24VAC actuator for 2- and 3-way valve body: 3/4″ and 1”

Actuateur EFFI-ACT24VAC pour corps de valve 2 et 3 voies : 3/4" et 1"

EFFI-ACTHD24VAC and EFFI-ACTSHD24VAC actuator for 2- and 3-way valve body: 3/4″, 1″, 1-1/4″, 1-1/2″, and 2”

Actuateur EFFI-ACTHD24VAC

3-way valve body available in: 3/4″ and 1”

Robinet-a-bille 3-voie

2-way valve body available in: 3/4″, 1″, 1-1/4″, 1-1/2″, and 2”

Robinet-a-bille 2-voie

Technical data

Valve body

  • Medium: cold/hot water, 50% glycol max.
  • Nominal pressure: PN20 (145 psi)
  • Ambient temp. range: −5…+60°C; 0…90%RH
  • Liquid temperature range: 2°C to 90°C (Max 120°C SS304)
  • Connection type: Internal thread (FNPT)
  • Valve type: 2-way and 3-way

Materials

  • Valve body: SS304 stainless steel
  • Barrel: SS304 stainless steel
  • Sealing: EPDM+PTFE, with double O-ring
  • Stem: EPDM O-rings, w/double O-ring

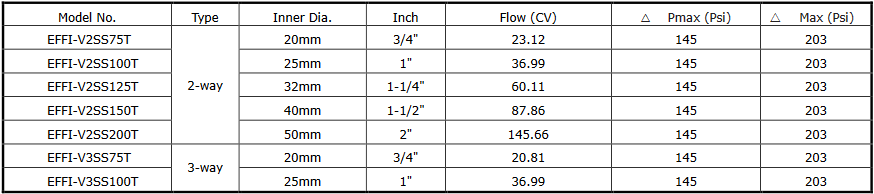

Table 1

table

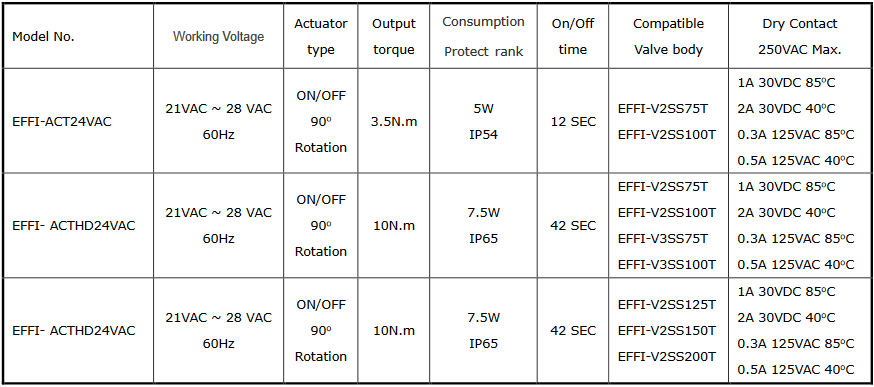

Table 2

table

ON/OFF type function (CLOSED/OPEN)

The actuator is controlled by a modulating on/off control signal that uses a reversible synchronous motor and a speed reducer to set and lock.

Download the documents

Installation

Insert the valve stem at the bottom of the actuator and insert the 2 pins at the bottom of the actuator into the valve mounting holes. Then screw in the brass nut. Be sure to move the actuator head to the position indicated based on the desired configuration. (Open or closed if powered or not).


2-Way valve

When the actuator head is positioned lengthwise (see image in Configuration #1), it allows liquid to flow through when the brown wire is energized.

voies-2

When the actuator head is positioned widthwise (see image Configuration #2), it allows liquid to flow through when the brown wire is not powered

voies-2

3-Way valve

When the actuator head in positioned widthwise (see image Configuration #1), it allows liquid to flow straight through when the brown wire is not energized.

voies-3

When the actuator head is positioned lengthwise (see image Configuration #2), it allows liquid to flow straight through when the brown wire is energized.

voies-3

Wiring detail for actuator EFFI-ACT24VAC, EFFI-ACTHD24VAC and EFFI-ACTSHD24VAC

  • The BROWN wire is the control wire:
  • If the BROWN wire is energized, the actuator rotates counterclockwise.
  • If the BROWN wire is not energized, the actuator rotates clockwise.
  • The RED wire is always connected to the LINE feed wire (L or R). Transformer 24VAC 60Hz power supply.
  • The BLACK wire is connected to NEUTRAL (C). 24 VAC 60Hz transformer power supply.
  • The GREEN wire (NO). Dry contact.
  • The ORANGE wire (NC). Dry contact.
  • The YELLOW wire (COM). For dry contact.

Can only be used as ON/OFF type.

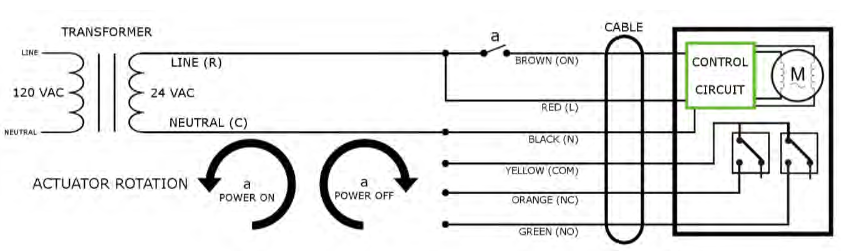

EFFI-ACT24VAC, EFFI-ACTHD24VAC and EFFI-ACTSHD24VAC Wiring Diagram

diagram

Dry Contact Capacity

  • Contact Rating (Resistive Load)
  • 1A 30VDC 85oC or 2A 30VDC 40oC
  • 0.3A 125VAC 85oC or 0.5A 125VAC 40oC
  • Max. switching current 2A
  • Max Switching Voltage
  • 250 VAC/220VDC
