BENEFITS:

Direct Replacement of Oil and Gas Boilers

The effiQueenc® UHT Cascade Series heat pumps enable the direct replacement of oil and natural gas heating systems, while maintaining the performance requirements of existing installations.

Hot water production up to 95 °C (203 °F) at outdoor temperatures as low as -20 °C (-4 °F), allowing the use of existing hydronic systems.

Compatible with high-temperature radiators, coils, and existing heat emitters.

No major modifications to existing distribution systems are required (flow rates and ΔT maintained), with the integration of a buffer tank or hydraulic separator.

✔ Ideal for energy retrofit and decarbonization projects

✔ Enables system conversion without replacing existing heat emitters

Significant Reduction in GHG Emissions

By eliminating the use of on-site fossil fuels, UHT technology enables:

• A significant reduction in greenhouse gas (GHG) emissions
• Improved building energy performance
• Direct contribution to decarbonization objectives

---

Operating Cost Optimization

• Optimized power management
• Reduced energy costs
• Improved efficiency at partial load
• Reduced on/off cycling

---

Complete Heating Solution

Ideal applications:

• multi-residential buildings
• hotels and resorts
• healthcare facilities
• schools and institutions
• sports facilities
• industrial applications
• agricultural buildings
• etc.

---

Stable Performance in Extreme Climate Conditions

Designed for Canadian climate, the UHT series offers:

• Maintained heating capacity at low outdoor temperatures
• Stable operation under severe conditions
• Continuous operation even during extreme cold weather

---

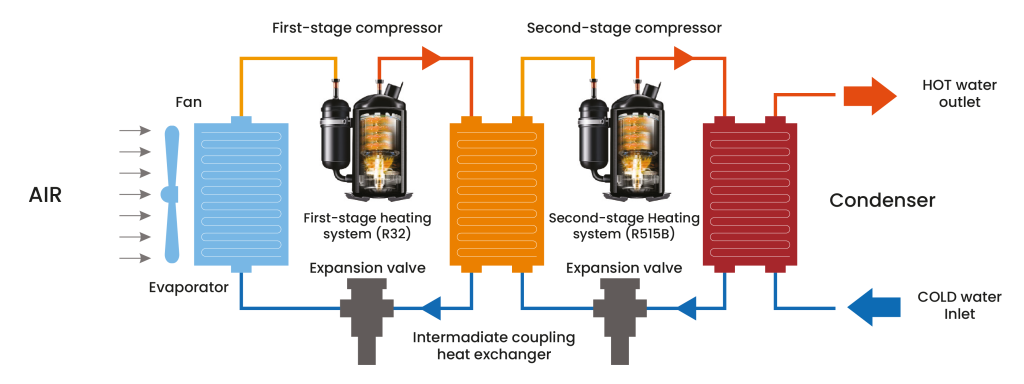

Operating Principle of effiQueenc® UHT Cascade Series Heat Pumps

• R-32 in the first stage (high energy efficiency)
• R-515B in the second stage (ultra high temperature)

Energy Efficiency Under Real Operating Conditions

• DC inverter modulation enabling operation at partial load
• Reduced on/off cycling → lower energy losses
• Improved seasonal efficiency compared to ON/OFF systems

---

Power Management and Redundancy (Multi-Unit Systems)

The modular design allows:

• Configuration of up to 8 units in hydronic cascade
• Alternating operation (rotation) of units based on runtime hours
• Staged start-up according to thermal load

✔ Improves overall system reliability and reduces wear

Advanced Intelligent Control and Simplified Operation

The effiQueenc® UHT Cascade Series heat pumps integrate an advanced control system designed to provide intelligent, precise, and intuitive operation management.

All system functions are managed by a programmable microprocessor, allowing fine adjustment of operating parameters based on the building’s actual requirements, either directly on-site or via the IoT platform. This approach ensures optimal adaptation to operating conditions and consistent performance.

The controller can be installed directly on the unit (standard configuration) or remotely inside the building using a wired controller.

---

The advanced control system provides:

• Precise adjustment of operating parameters
• A user-friendly interface for the operator
• Centralized management of multiple units
• Simplified day-to-day operation

Intelligent Weather Compensation Control

• Temperature curve modulated based on outdoor temperature
• Intelligent modulation control, optimizing efficiency according to actual demand

The integrated compensation curve automatically adjusts the water temperature based on outdoor conditions, ensuring both comfort and energy efficiency.

This function is fully configurable and can be enabled or disabled depending on system requirements.

Reliability and Durability

• Stable operation under extreme conditions –35 °C to 43 °C (–31 °F to 109 °F)
• Compliant with North American requirements

• Robust and durable design
• Industrial-grade components
